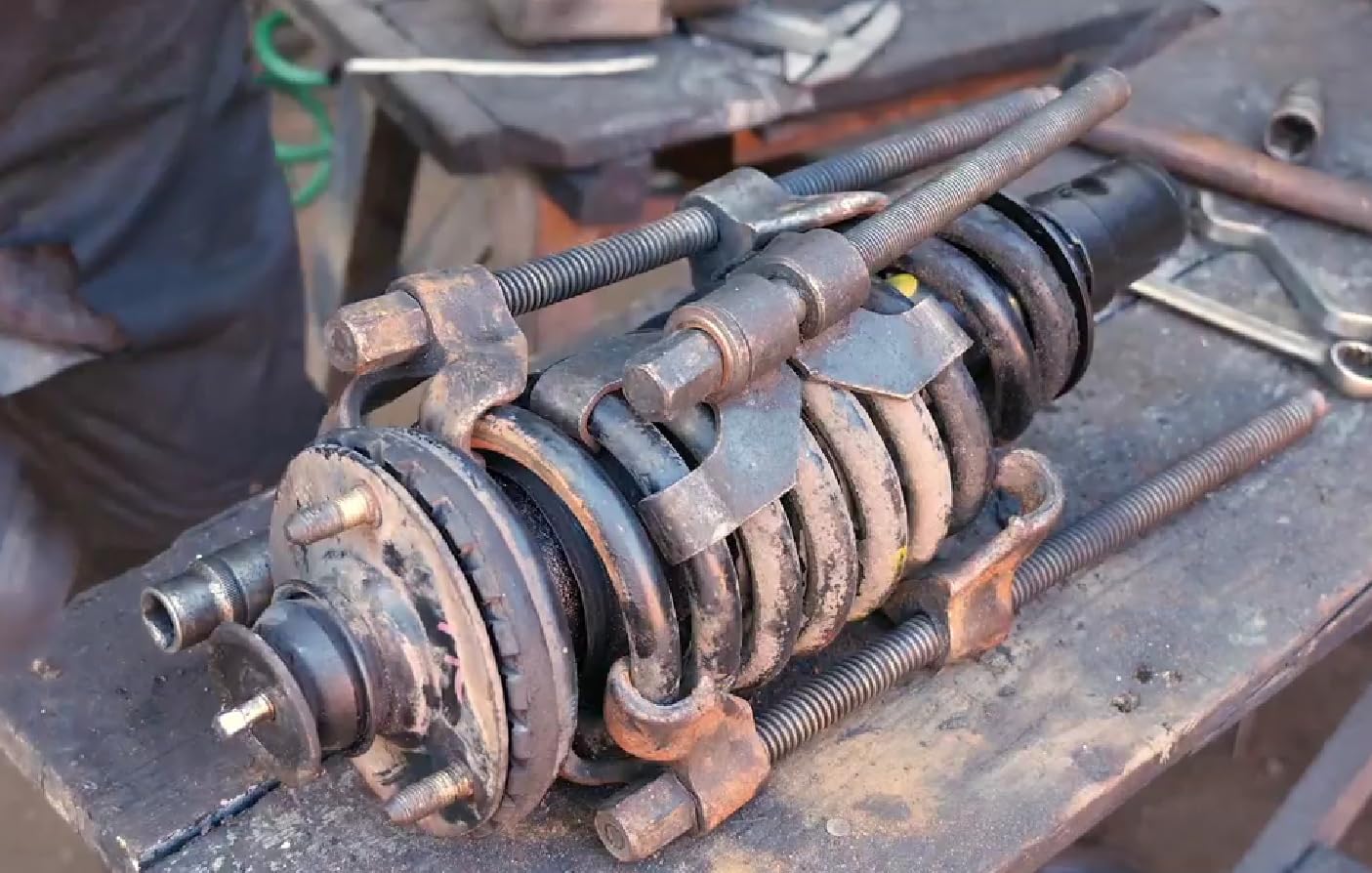

14inches Coil Spring Compressor Strut Remover Installer Tool Kit

1>Affix one leg of tool. Hooks on both ends of leg should engage coil spring 2>Be sure that movable hex nuts are threaded onto bolt and seated in hex holes of double hook. Hand tighten bolt. 3>Affix second leg of tool on opposite side of coil spring in same manner as done for first leg. Hand tighten bolt. 4>Apply safety hooks to spring with flange and wing nuts. Assemble to each leg and coil spring. Wing nuts should be finger tight 5>Compress coil spring using hand tool or impact gun with 15/16" socket. Turn each bolt alternately so that compression of spring is equal on each side. 6>Compress until the ends of the spring are completely free of the spring seats at each end of the coil. Total compression required isusually not more than 3" 7>Remove upper bearing dust cap on strut to expose piston rod nut. 8>Remove piston rod nut, upper bearing plate and upper coil spring seat. 9>Remove coil spring in compressed condition and set aside. Shock absorber is now exposed to be fixed or replaced 10>Reassemble all components in reverse order. Be sure coil spring seats are reassembled so that they match ends of coil spring. 11>Loosen each leg evenly and allow the ends of coil spring to contact the seat properly. Remove each leg. 12>Repaired Strut is now ready to be reinstalled on vehicle. How to use

• Drop forged jaws & lead screws screws 350mm/14 inch both heat treated to ensure professional performance.
• Use Externally to Compress Strut Coil Springs.
• Permits Quick and Safe Removal or Installation of Springs.
• Zinc Plated Compressor Fit Most Strut Sizes.
• Drop Forged, Heat Treated Steel. Please confirm whether this coil spring compressor fits for your model before buying.
